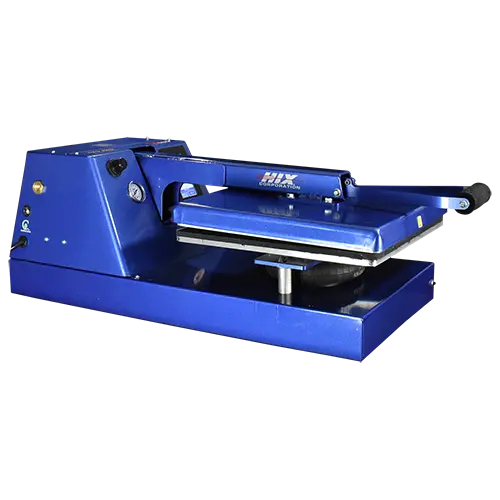

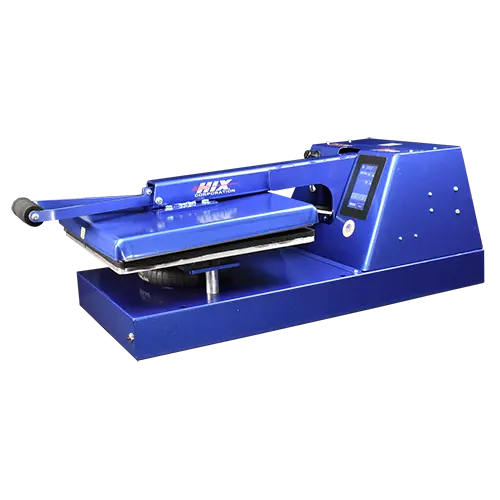

HIX N-680 Pneumatic Clamshell Heat Press - 15"x15- USA-made
HIX N-680 Pneumatic Clamshell Heat Press – 15" x 15" Power for High-Volume Production
The HIX N-680 Air-Operated Heat Press is built for serious productivity and performance. Designed for high-output environments, this pneumatic clamshell heat press combines heavy-duty construction with the effortless operation of an air-powered lift system — reducing operator fatigue and increasing daily output.
Whether you're pressing DTF transfers, sublimation prints, vinyl graphics, or specialty heat-applied materials, the N-680 delivers precision, consistency, and efficiency in every cycle. If you need a reliable commercial-grade heat press that can handle heavy workloads with minimal physical effort, this is your go-to machine.
Ideal for:
- T-shirt printing
- DTF and vinyl transfers
- Custom promotional products
- High-production shops
Key Features of the HIX N-680 Pneumatic
✅ Pneumatic Operation for Maximum Efficiency
The N-680 features a durable pneumatic air cylinder lift system, powered by your air compressor (87 PSI connection required). This system applies consistent pressure with minimal effort, making it ideal for shops running long pressing sessions throughout the day.
✅ Fast-Action Air Valve for Quicker Clamping
A larger air valve ensures fast open/close action, helping you move through jobs more quickly without sacrificing pressure accuracy or transfer quality.
✅ Consistent Heat with In-House Cast Platen
The heating element uses a proprietary aluminum alloy cast in-house by HIX, ensuring superior heat retention and even distribution across the entire 15" x 15" platen.
✅ Floating Lower Platen = Even Pressure
The floating lower platen adjusts to the thickness of the material being pressed, delivering edge-to-edge pressure even on bulky garments or rigid substrates.
✅ Smart Touchscreen Controller
Control your press with ease using the full-color LCD touchscreen. Set time and temperature precisely, view pressure readings during operation, and save presets for your most common products.
✅ 4”x5” Pressure Plate for Uniform Application
The handle attaches to a 4” x 5” top pressure plate, distributing force more evenly across the platen — just like using your entire hand instead of a single point of contact.
✅ Heavy-Duty Frame with All-Metal Construction
Built to last in demanding environments, the N-680 features industrial-grade materials, reinforced bushings at wear points, and a wide clamshell opening for easy garment loading and unloading.
